Description

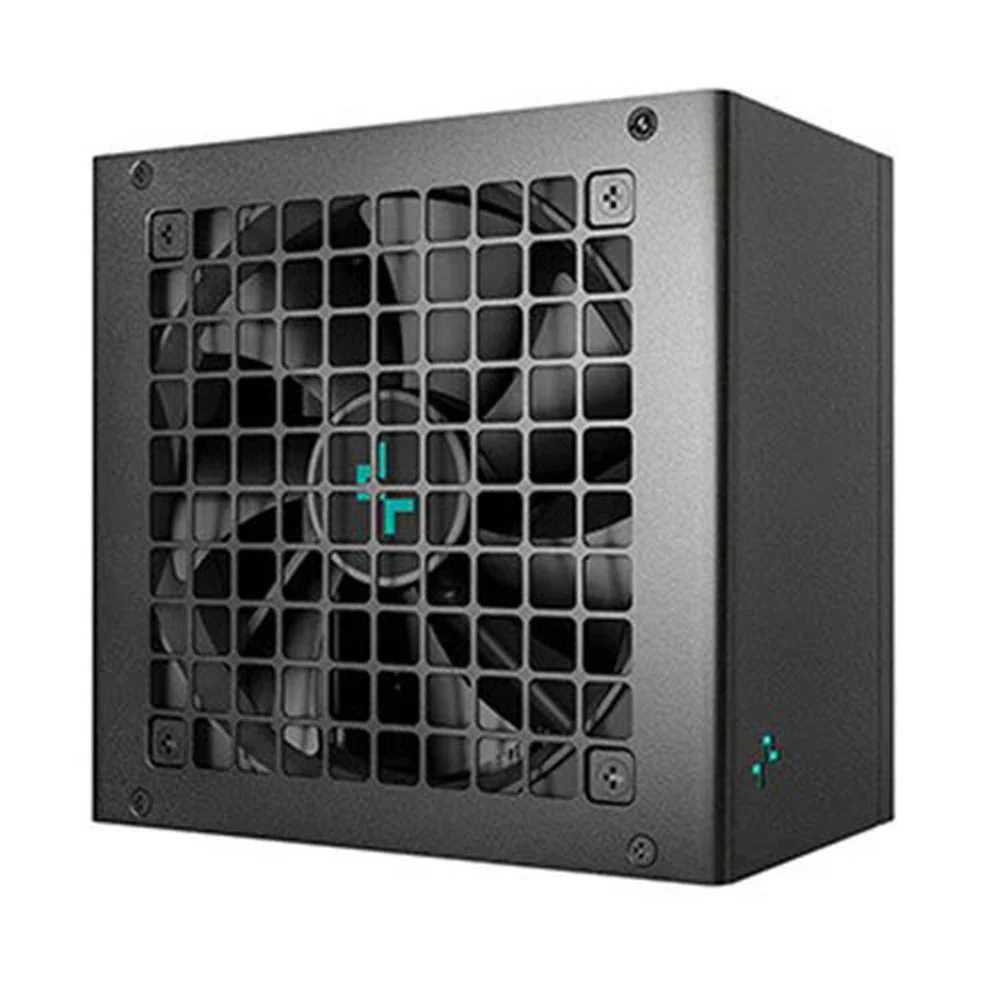

Features of Deepcool PN750M 750W 80+ Gold Fully Modular Power Supply
- The DeepCool PN750MÂ 750W Power Supply is a new power supply that adheres to the latest Intel ATX 3.1 and PCIe 5.1 standards.
- The Deepcool Power Supplyis equippedd with a high-grade 105 °C-resistant 16AWG copper-core 12V-2×6 cable. The PN750M provides up to 450W for modern GPUs.
- With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
- Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
- 80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
- The PN750M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Get the Best 80 Plus Gold CPU Power Supply from us today!
Specifications of DEEPCOOL PN750M 750W 80+ Gold Fully Modular Power Supply
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40? |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| P/N | R-PN750M-FC0B-IN |
