Description

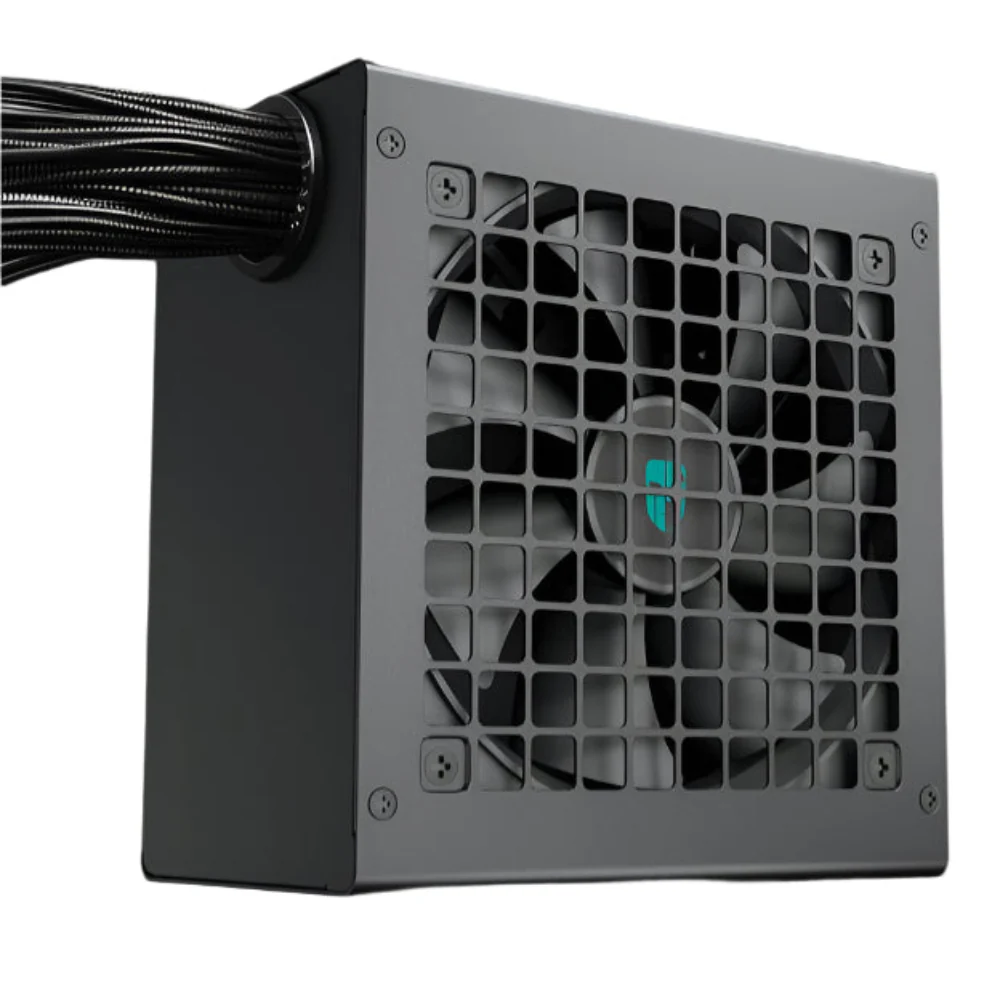

Features of DEEPCOOL Gamer Storm PN850D 850W 80+ Gold Non-Modular ATX 3.1 Power Supply
FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105 °C-resistant 16AWG copper-core sleeved 12V-2×6 cable, the PN850D provides up to 600W for modern GPUs.
SLEEVED CABLES
The PN850D has been outfitted with sleeved cables right out of the box! A welcome upgrade to add to the premium aaestheticand feel of the PSU.
DYNAMIC HYDRO BEARING FAN
The PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
Specification of DEEPCOOL Gamer Storm PN850D 850W 80+ Gold Non-Modular ATX 3.1 Power Supply
| Model No | R-PN850D-FC0B-JGIN-V2 |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×150×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/ä¸å›½ RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Note** | Prices, Specifications & Features are subject to change without notice |
