Description
Features of ASUS Dual Radeon RX 7800 XT OC Edition 16GB
- OC Mode: up to 2565 MHz (Boost Clock)/ up to 2254 MHz (Game Clock).
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Auto-extreme technology uses automation to enhance reliability.

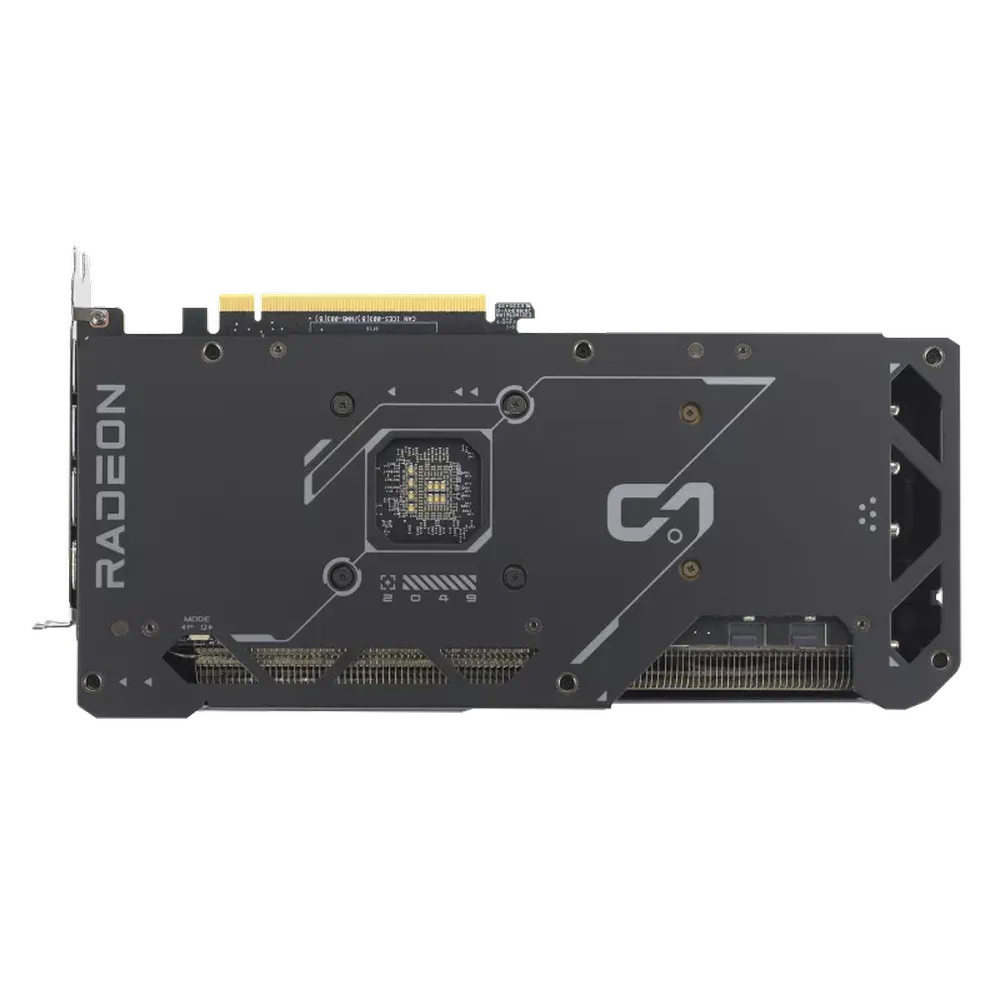

- A protective backplate prevents PCB flex and trace damage.
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
2x Fans. 2x Fun.

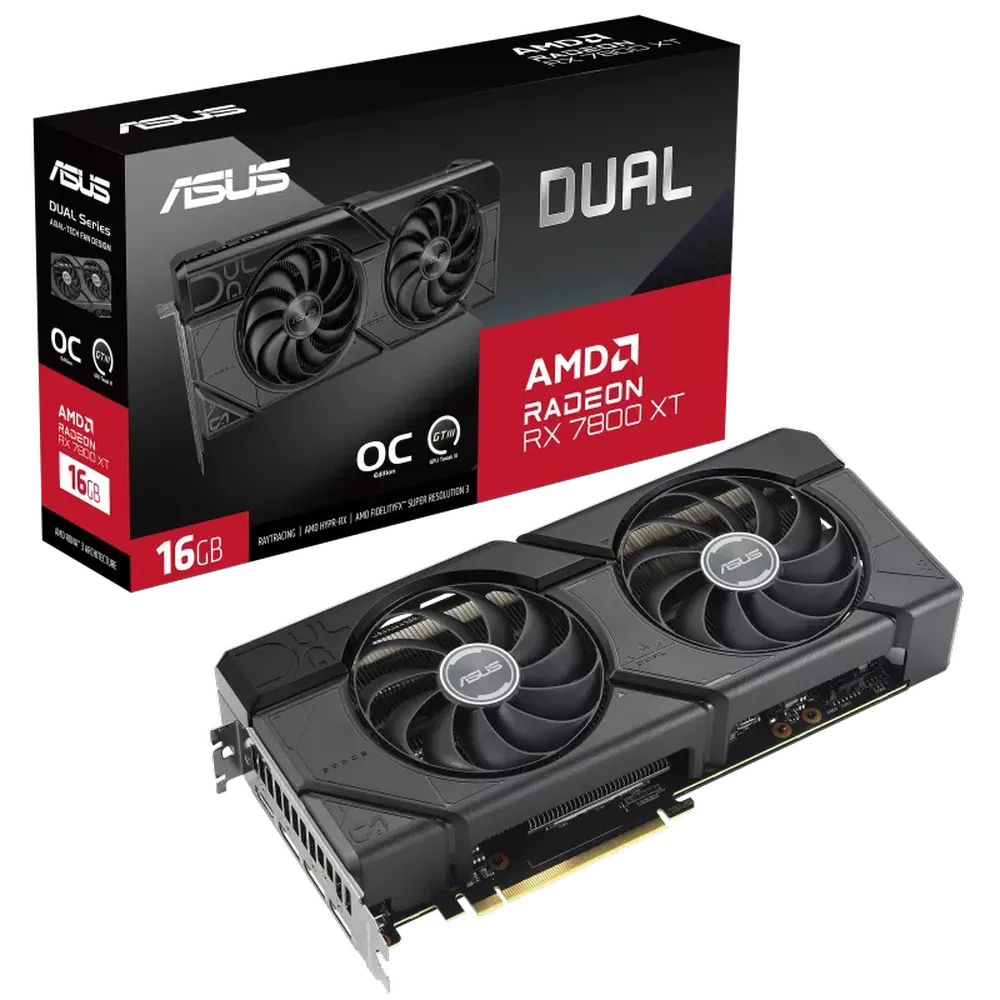

Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the ASUS Dual Radeon RX 7800 XT OC Edition 16GB graphics card melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage in cutting-edge gaming prowess.

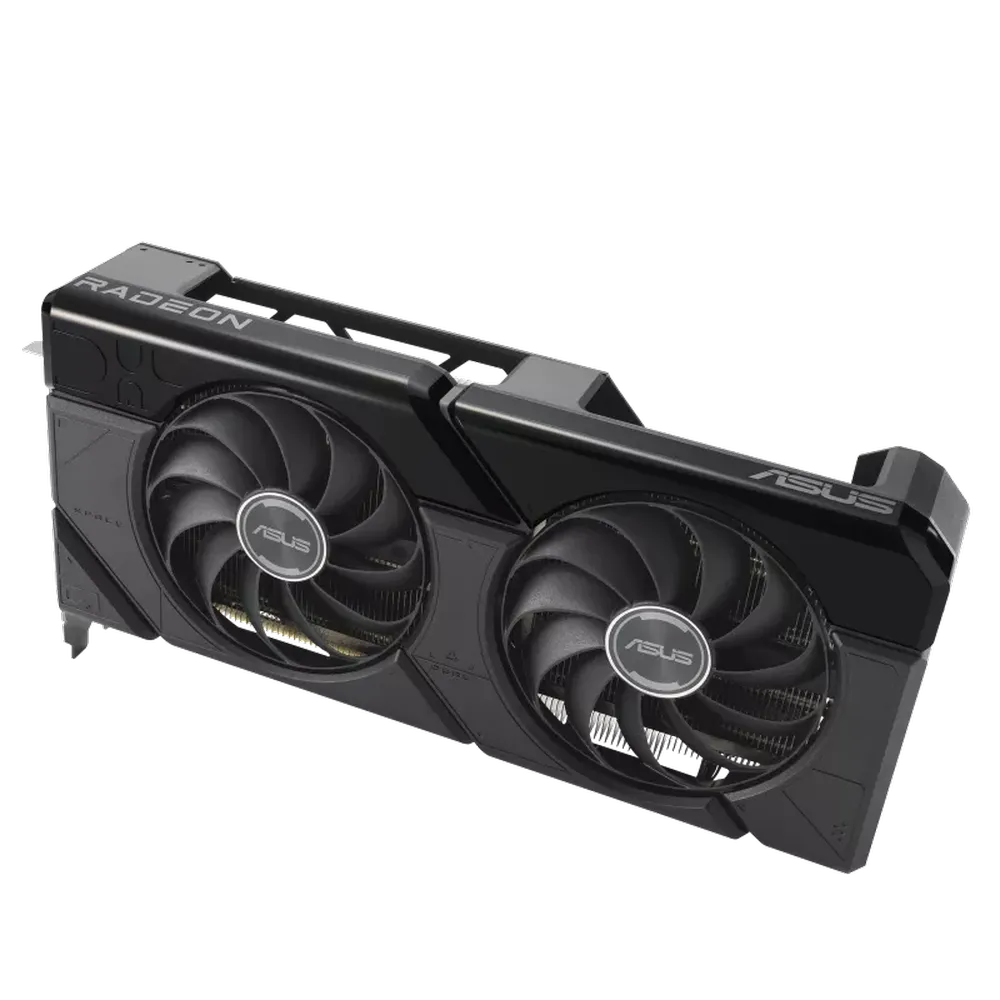

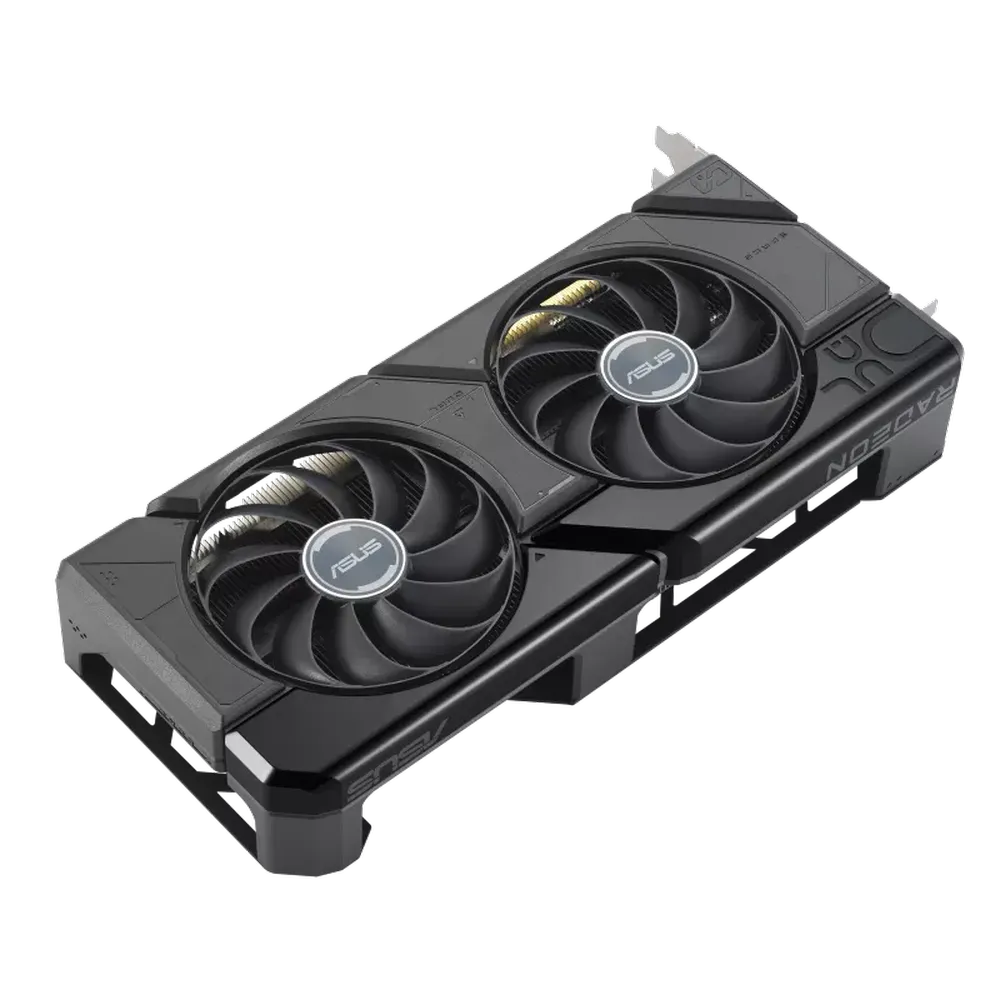

Axial-tech Fan Design-Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology-Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Specifications of ASUS Dual Radeon RX 7800 XT OC Edition 16GB
| Model | DUAL-RX7800XT-O16G |
| Graphic Engine | AMD Radeon™ RX 7800 XT |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock |
OC mode: up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock) Default mode: up to 2475 MHz (Boost Clock)/up to 2169 MHz (Game Clock) |
| Stream Processors | 3840 |
| Memory Speed | 19.5 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 2.1) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories |
1 x Thank you card 1 x Speedsetup Manual |
| Software | ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| Dimensions |
279.9 x 133.9 x 49.3 mm 11.02 x 5.27 x 1.94 inch |
| Recommended PSU | 750W |
| Power Connectors | 2 x 8-pin |
| Slot | 2.47 slot |
